Acoustic Enclosures

Home >> Industrial Noise Control >> Acoustic Enclosures

Acoustic Panels

Modular Design

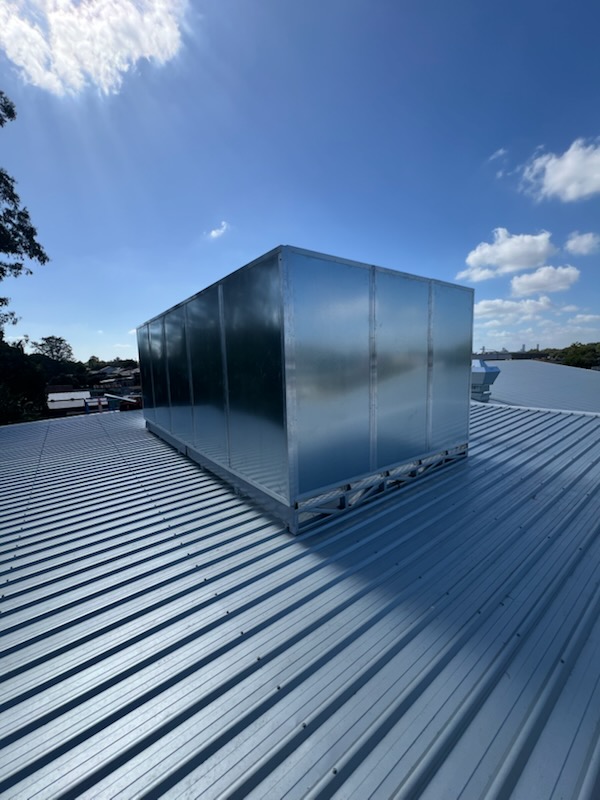

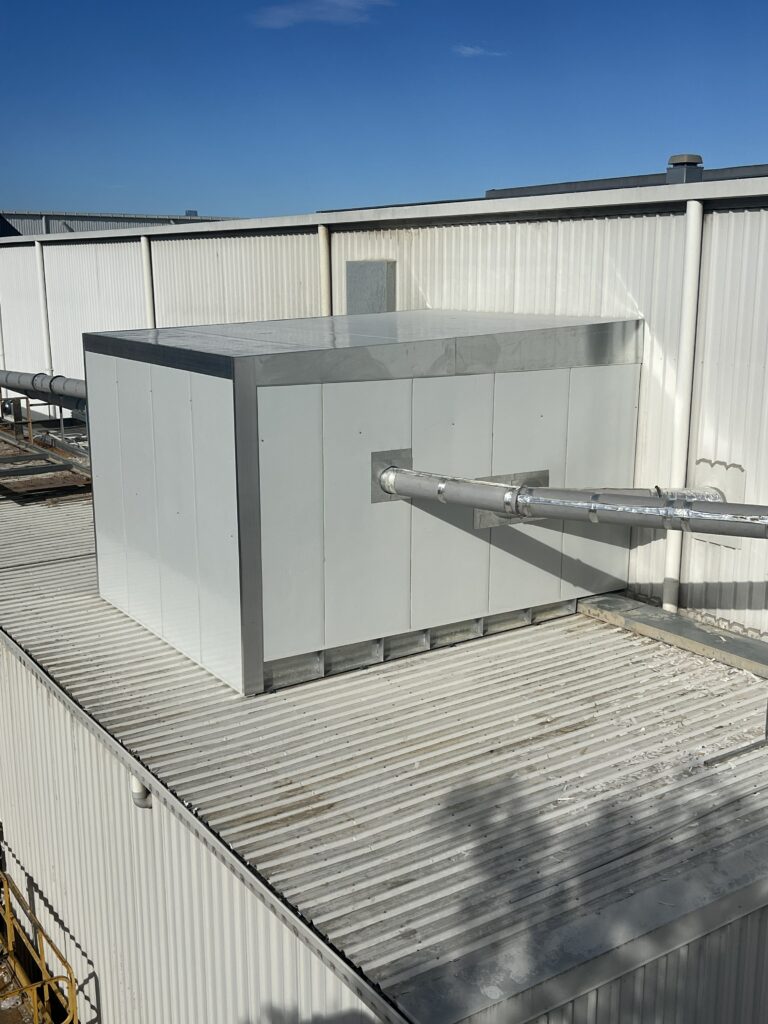

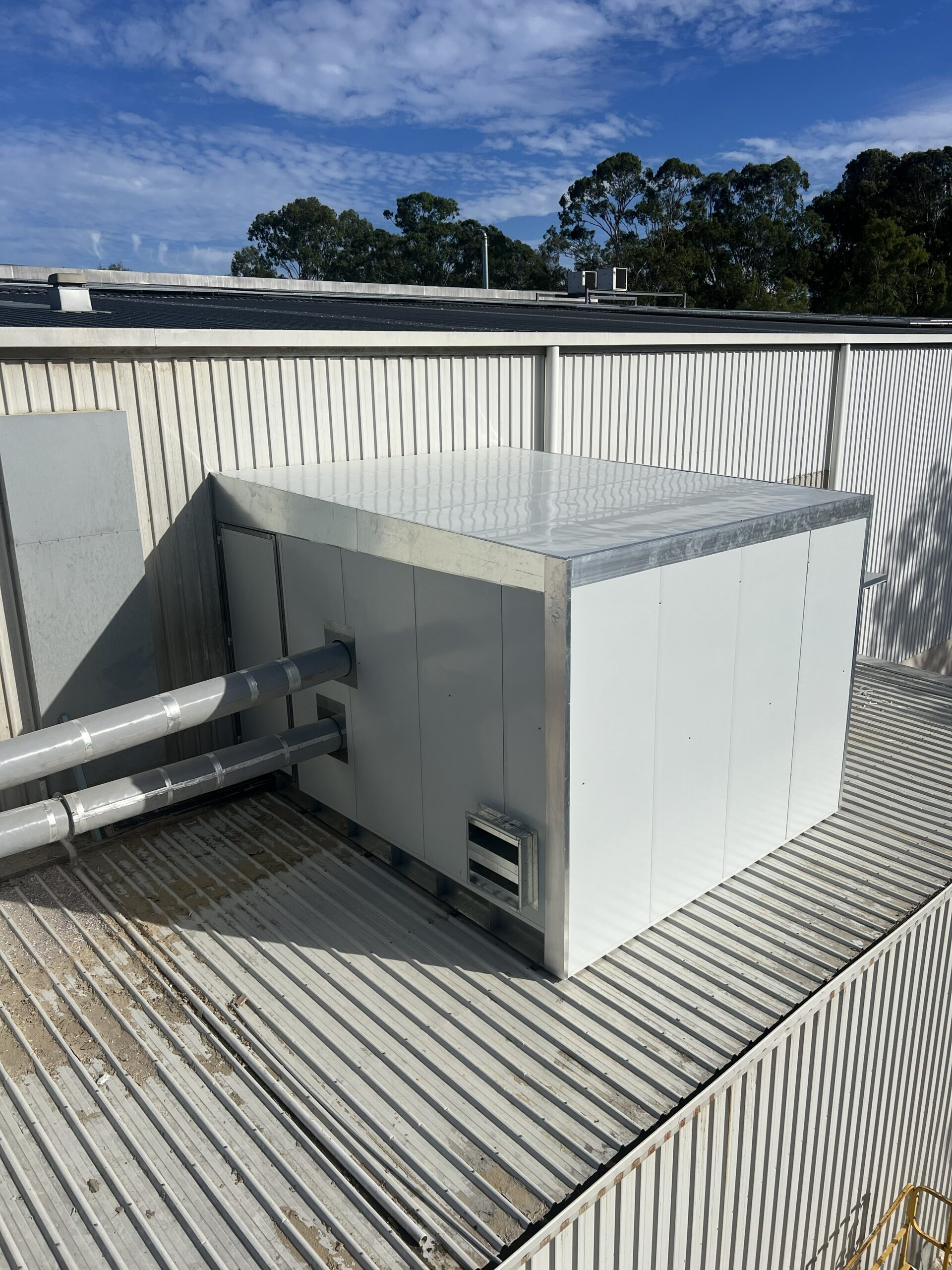

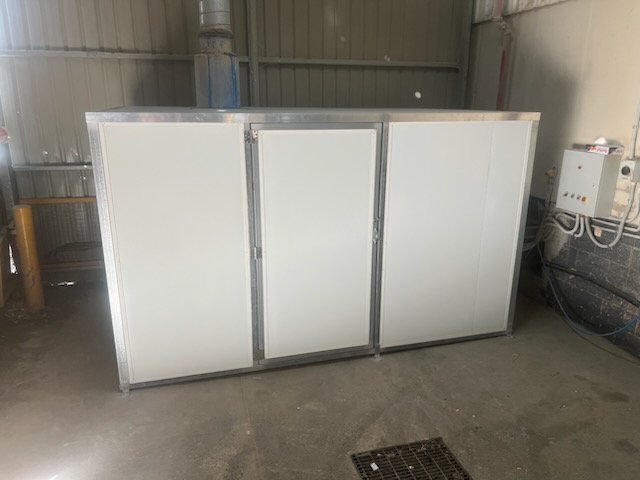

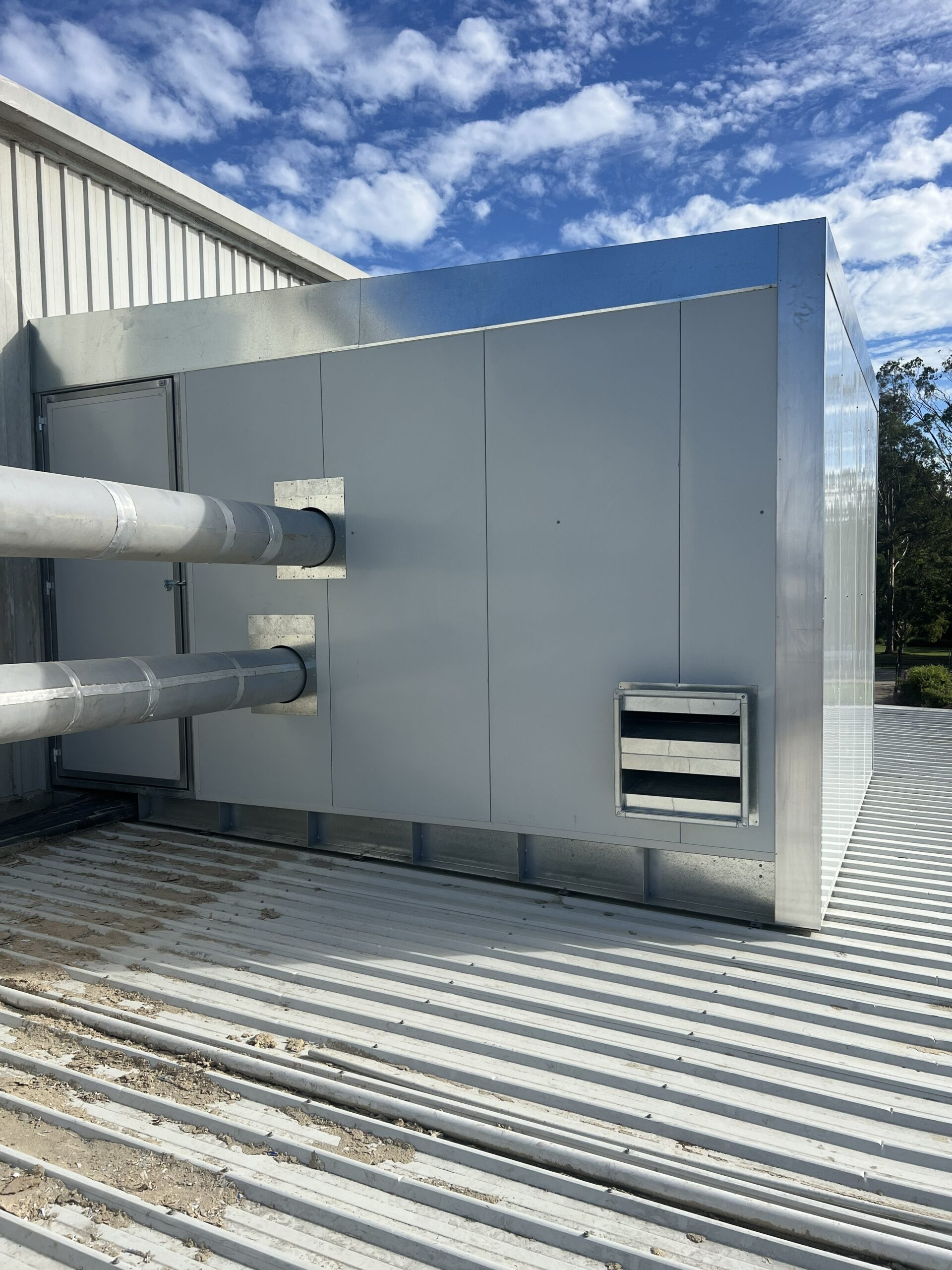

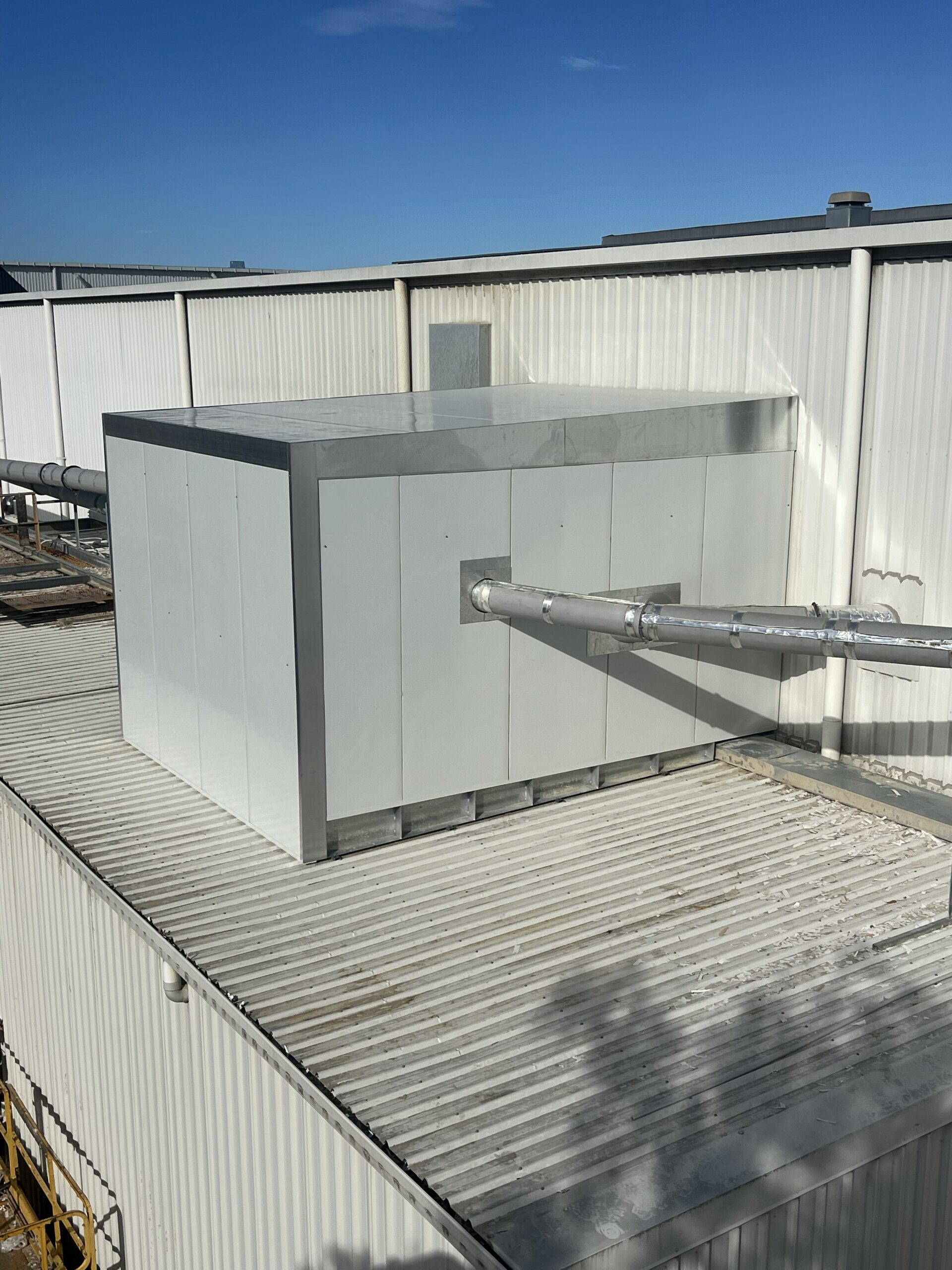

Ecoshield Acoustic Enclosures are a modular design acoustic panel system providing a high level of noise reduction for both internal and external applications.

Acoustic Enclosures typically achieve performance between 15dB(A) to 30dB(A) Our Acoustic Enclosures are custom designed and manufactured to meet individual customer specifications.

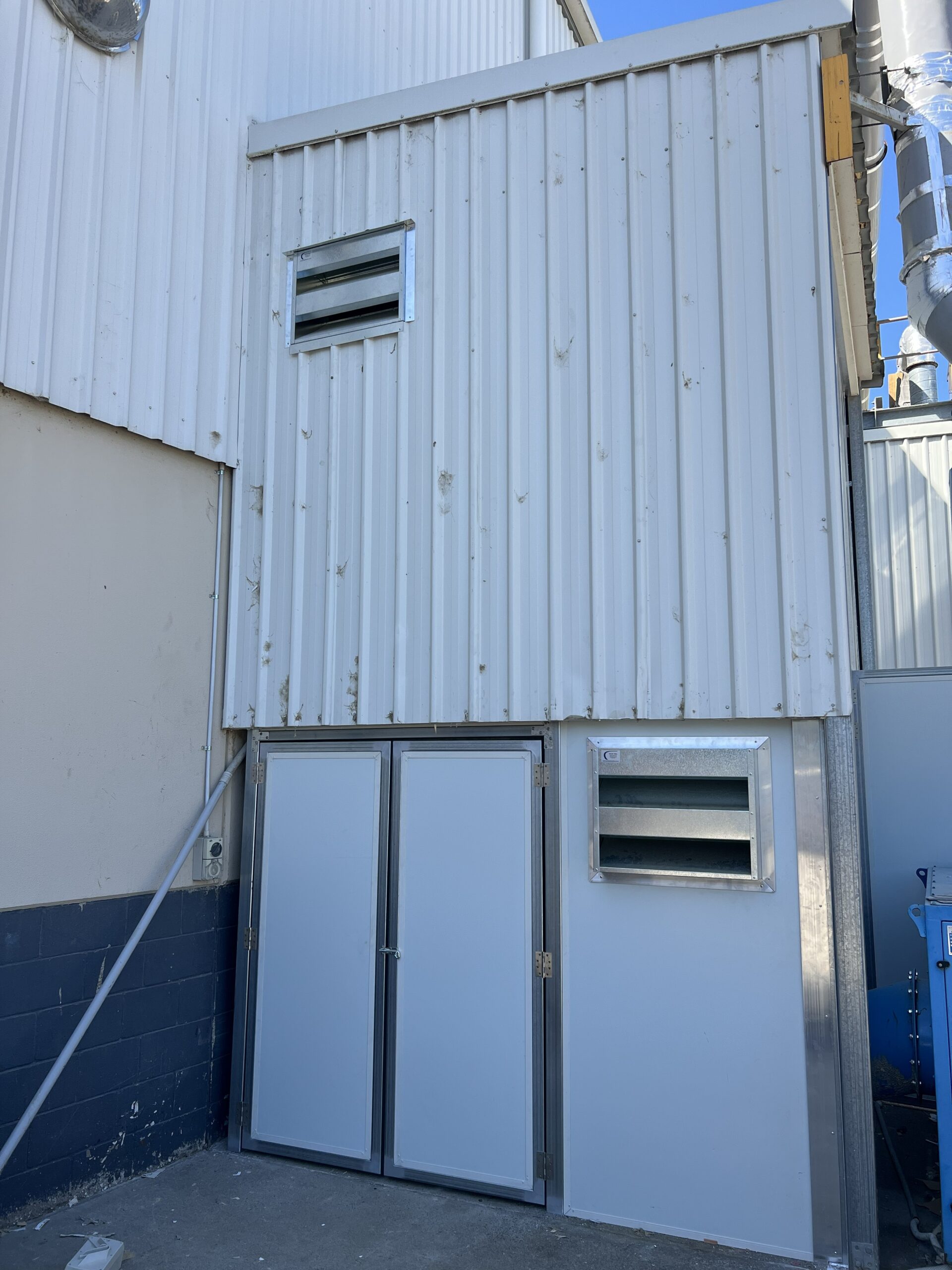

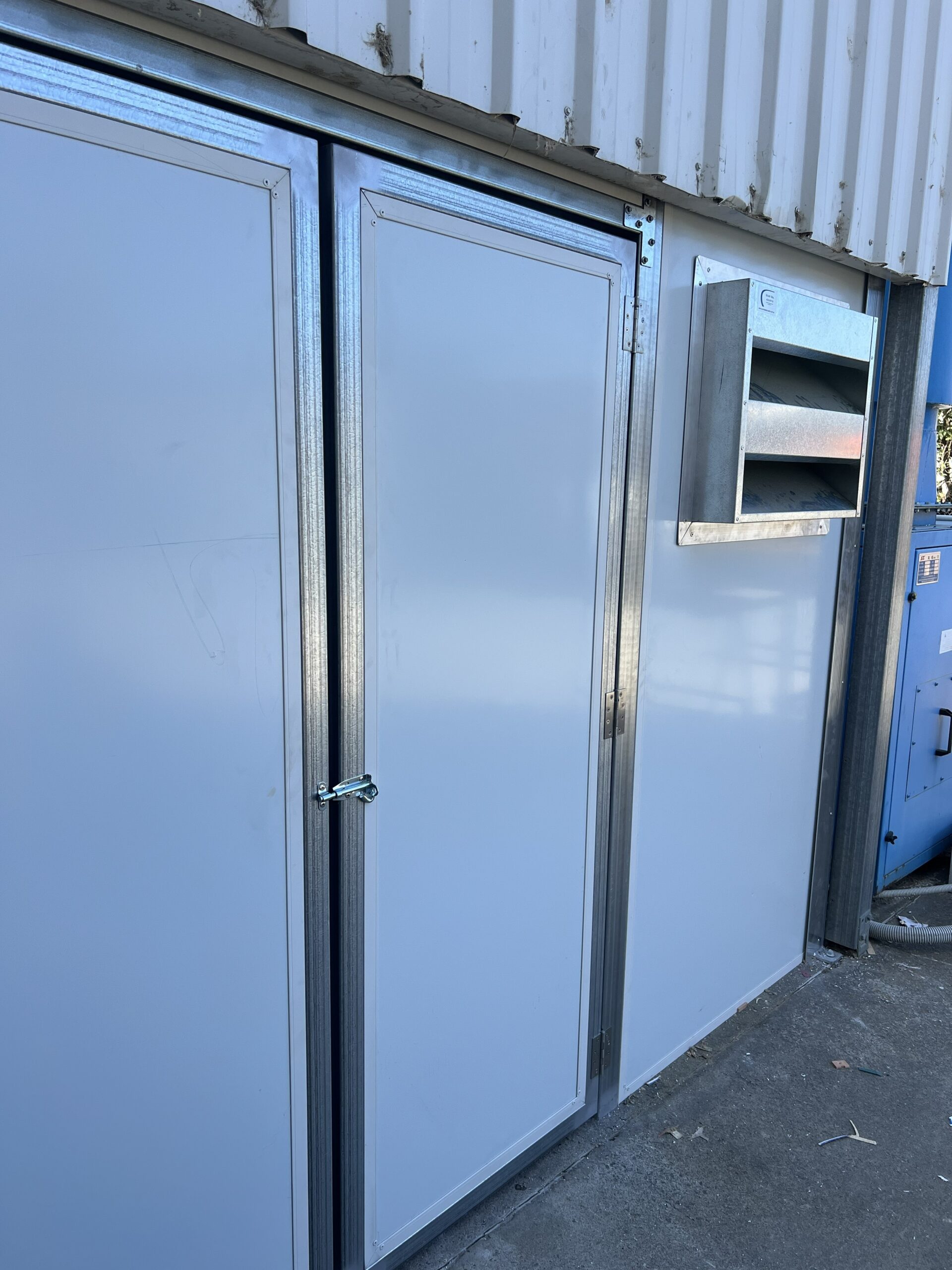

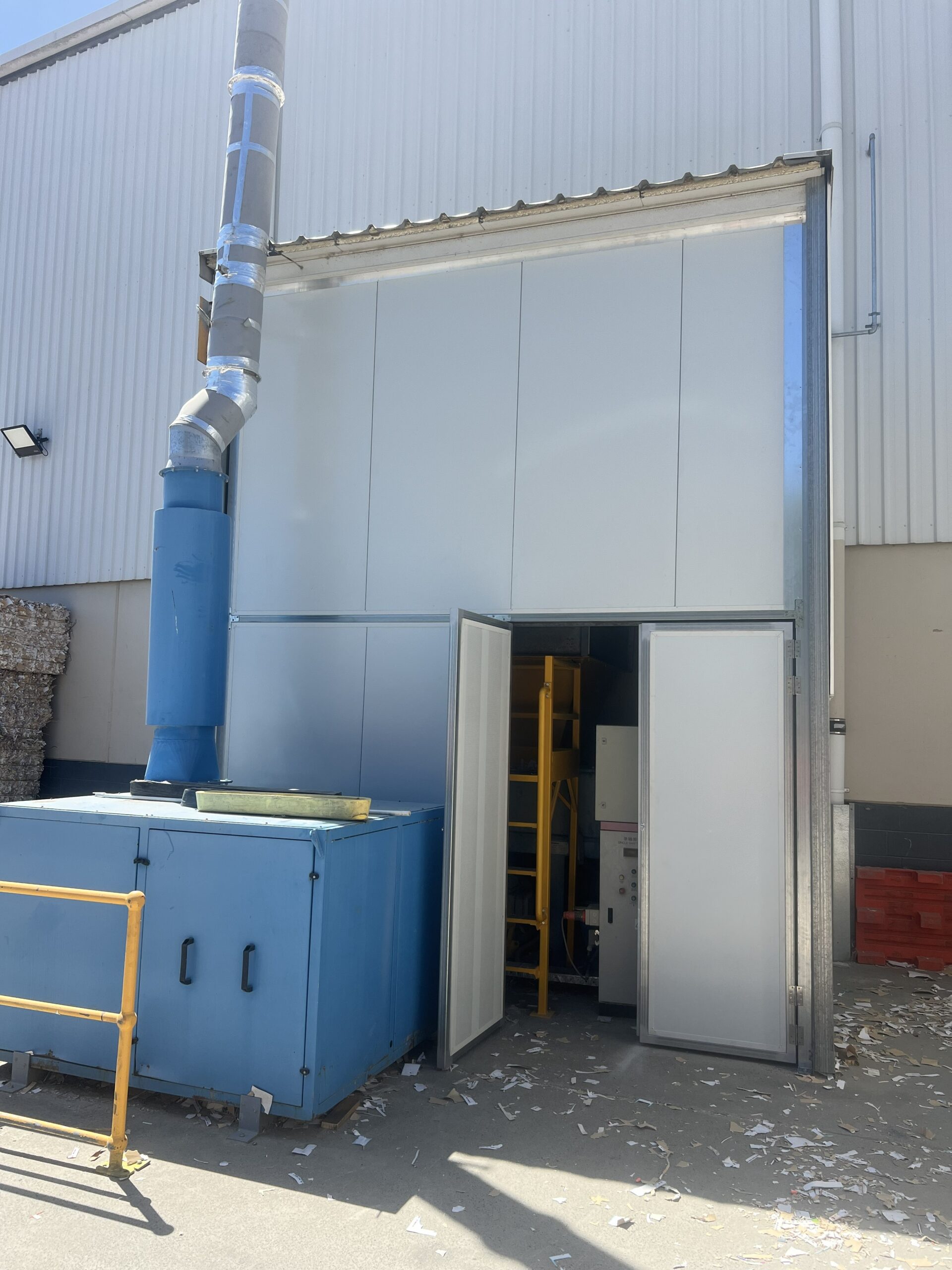

The flexibility of design allows for incorporating various options such as personnel access doors, visual panels and acoustic louvres or attenuators for ventilation.

Our modular panels are lightweight and easy to install and manufactured from 50mm perforated acoustic sandwich panels.

Advanced Noise Control Solutions

Ecoshield Acoustic Enclosures are a highly versatile, modular acoustic panel system engineered to provide exceptional noise reduction for both indoor and outdoor environments. Designed for industrial, commercial, and environmental noise control, these enclosures effectively minimize noise pollution, ensuring compliance with regulatory standards and improving workplace safety.

Our acoustic enclosures typically achieve noise attenuation levels ranging from 30dB(A) to

40dB(A), making them ideal for various high-noise applications such as manufacturing plants, power generation facilities, HVAC systems, and test chambers.

Features

Acoustic Enclosure Features

• High sound absorption – NCR 0.95

• Non-combustible

• Rigid and durable

• Easily worked

• Lightweight

• Non-toxic, volatile organic compound free

• Quick and simple to install

• Easily maintained and cleaned

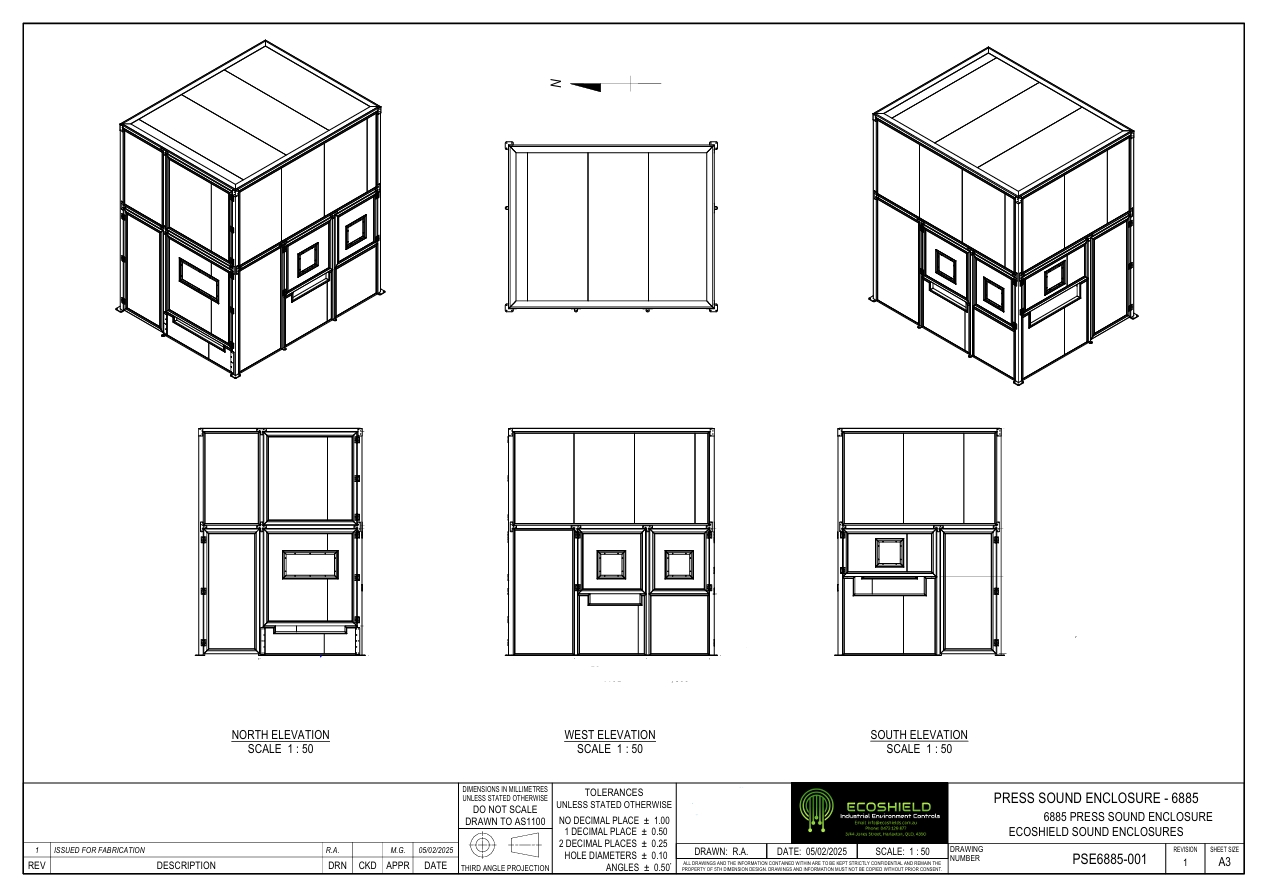

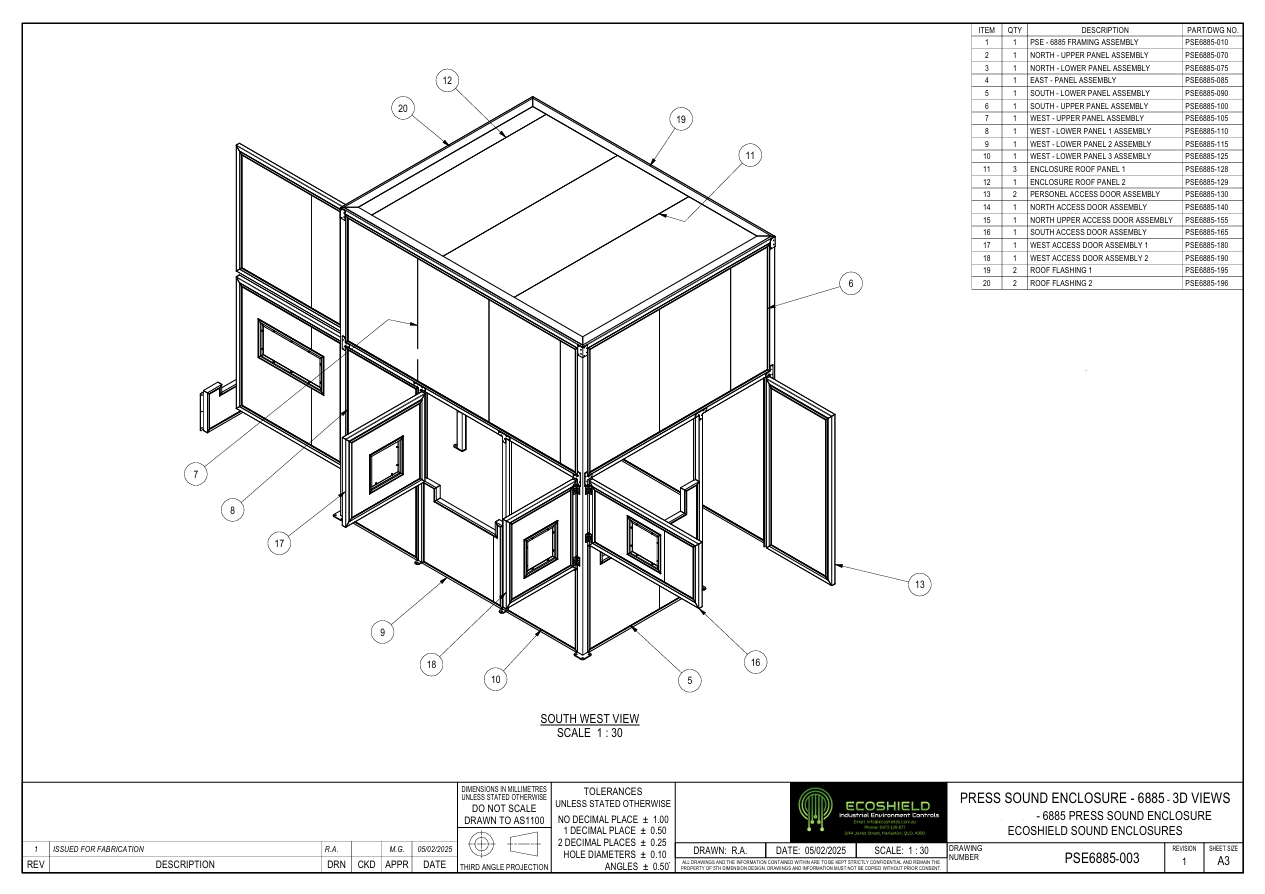

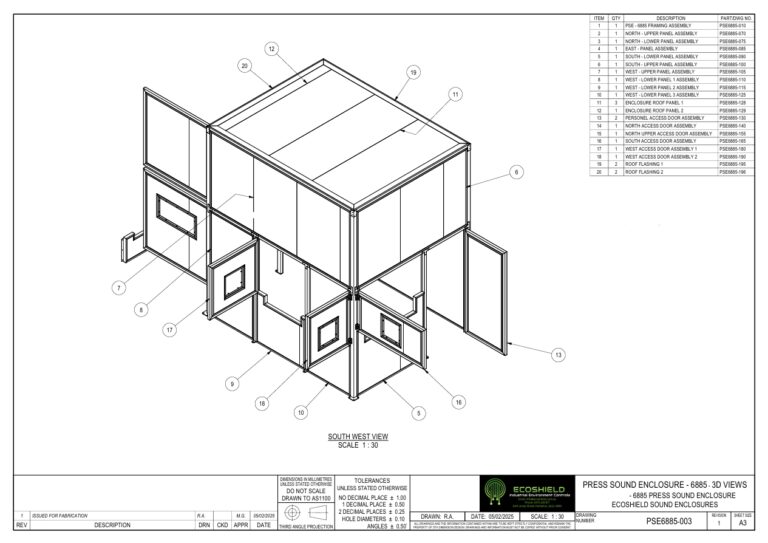

Custom-Designed

for Optimal Performance

Each enclosure is custom-built to meet speciﬁc project requirements, offering maximum ﬂexibility in design. Various features can be seamlessly integrated, including:

• Personnel access doors for easy maintenance and operation

• Visual panels for real-time monitoring of enclosed equipment

• Acoustic louvres and attenuators for controlled ventilation while maintaining sound insulation

Introducing the DS-AcoustiCore Panel

At the heart of our acoustic enclosures is the DS-AcoustiCore panel, a high-performance, tunable acoustic panel designed for superior noise reduction. Available in thicknesses ranging from 50mm to 200mm, the DS-AcoustiCore panel delivers excellent sound absorption and transmission loss, making it ideal for demanding industrial and commercial applications.

To suit different environmental and operational needs, DS-AcoustiCore panels are available in:

• Galvanized or powder-coated steel – High strength and durability

• Aluminum – Lightweight and corrosion-resistant

• Stainless steel (304 or 316 grades) – Ideal for harsh environments, chemical plants, and food processing industries

Enhanced Acoustic Performance with Tunable Core Technology

For applications requiring superior noise attenuation or precise frequency targeting, the DS-AcoustiCore panel can be customized with advanced tunable core materials, including:

1. Mass Loaded Vinyl (MLV) Integration

Tunable Acoustic Performance – By adjusting the panel’s mass, speci c frequencies can be
targeted, making it e ective for controlling low-frequency industrial noise such as engine hums, generator drones, and HVAC vibrations.

Increased Sound Transmission Loss (STL) – The addition of MLV signiﬁcantly enhances the panel’s ability to block airborne noise, reducing sound transmission even further.

Versatile Noise Control – Ideal for environments requiring strict noise compliance, such as research facilities, recording studios, test chambers, and urban infrastructure projects.

2. Tunable Mass Mineral Wool Core

Variable Density Mineral Wool – The DS-AcoustiCore panel features a high-density mineral wool core, which can be customized with diƯerent densities and layered conﬁgurations to optimize sound absorption and damping.

Targeted Frequency Control – By tuning the mass and composition of the core, the panel can be custom-engineered to absorb and attenuate speciﬁc frequency ranges, addressing both low- frequency industrial noise and high-frequency equipment sounds.

Thermal & Fire Resistance – In addition to excellent acoustic performance, the mineral wool core provides high thermal insulation and ﬁre-resistant properties, making it suitable for high-risk industrial environments.

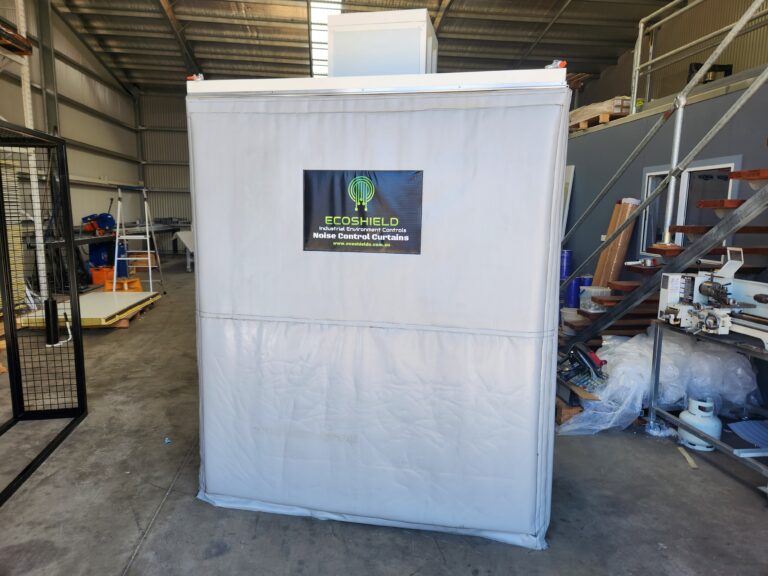

Hybrid Acoustic Enclosure with Ecoshield Acoustic Curtains

For applications requiring a combination of hard and soft face noise control, Ecoshield Acoustic Curtains can be incorporated alongside DS-AcoustiCore panels to create a hybrid acoustic
enclosure. This innovative approach provides:

• Dynamic Sound Control: Hard panels effectively block and reﬂect noise, while soft acoustic curtains absorb and diƯuse sound energy, reducing reverberation within the enclosure.

• Flexible Access & Adjustability: The acoustic curtain sections allow for easy access to
machinery, maintenance areas, and operational zones, making them ideal for dynamic work environments.

• Cost-Effective Noise Management: A hybrid system offers high acoustic performance while maintaining ﬂexibility and aƯordability, particularly in applications requiring partial noise containment or temporary modiﬁcations.

• Lightweight & Modular Design: The combination of rigid DS-AcoustiCore panels with Ecoshield Acoustic Curtains enables a highly adaptable noise control system, suitable for changing industrial layouts and evolving production environments.

Applications Across Multiple Industries

The Ecoshield Acoustic Enclosure with DS-AcoustiCore panels and Ecoshield Acoustic Curtains are used in various sectors, including:

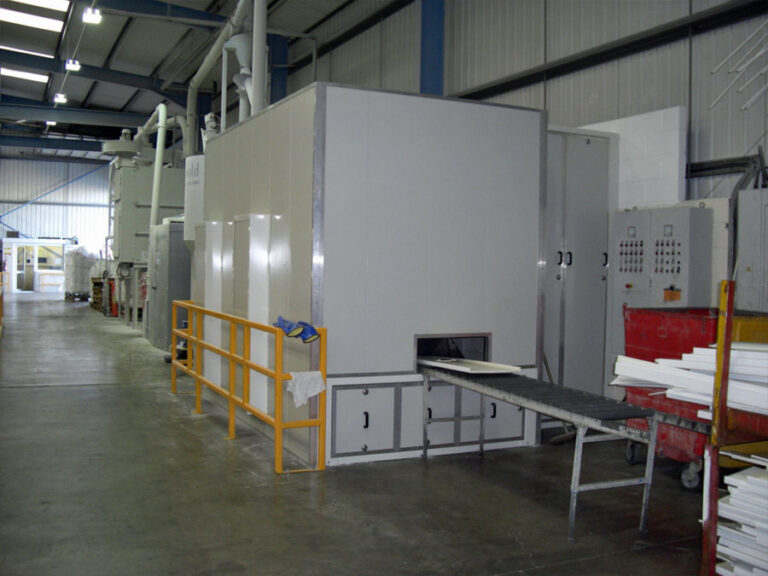

Manufacturing & Heavy Industry

Containing noise from compressors, pumps, and industrial machinery

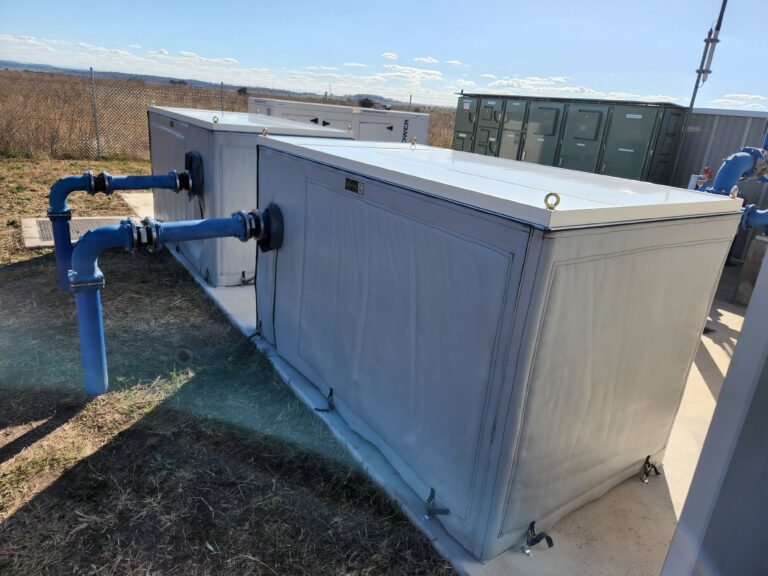

Power & Energy

Enclosing turbines, engines, and substations

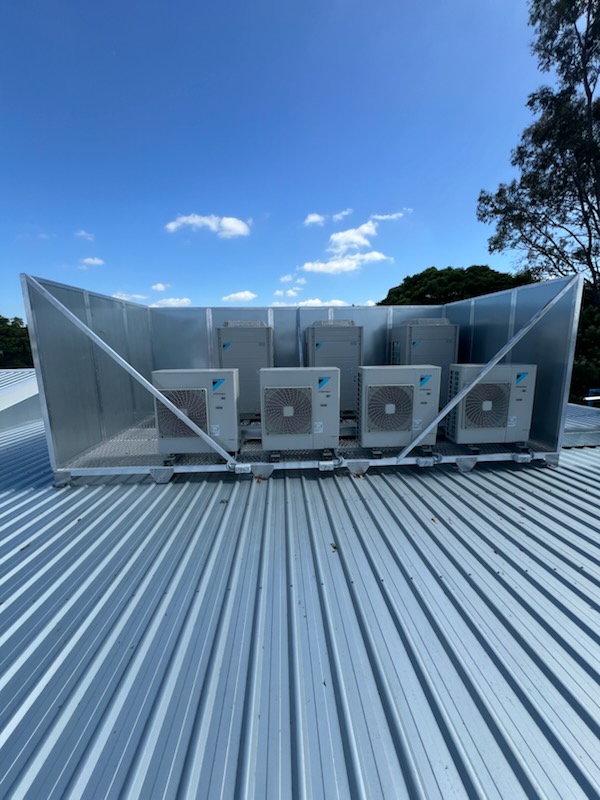

HVAC & Ventilation Systems

Controlling noise from fans, chillers, and air handling units

Testing & Research Facilities

Soundproof test chambers and laboratories

Data Centers & IT Infrastructure

Minimizing noise from cooling systems and server rooms

Construction & Transportation

Noise barriers for roadways, rail systems, and urban infrastructure

With modular construction, easy installation, and fully customizable features, Ecoshield Acoustic Enclosures equipped with DS-AcoustiCore panels and Ecoshield Acoustic Curtains provide a cost-effective, high-performance solution tailored to your speciﬁc noise control needs while meeting stringent industry standards.

Sound Transmission Loss Test

PDF Document

File Name

J2641-sound-tranmission-loss-test-ecoshield-rev-0.pdf

File Size

469Kb
